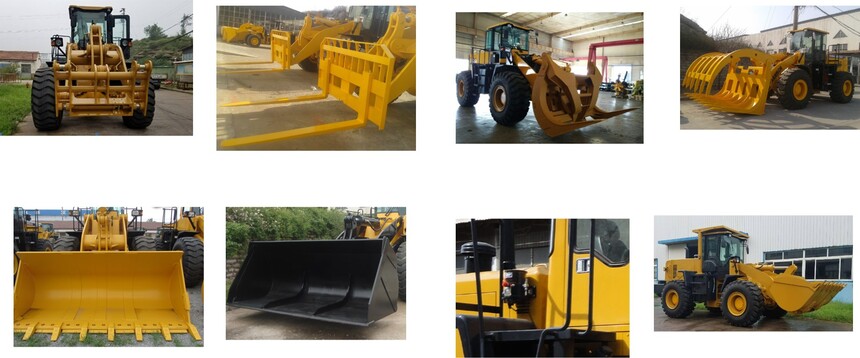

5 ton wheel loader

2

整机重量overall weight

16500kg

3

额定斗容量rated bucket capacity

3m3

4

最大牵引力maximum tractive force

152KN

5

最大崛起力maximum breakout force

≥170KN

6

最大爬坡能力maximum grade ability

30℃

7

最大卸载高度maximum dump height

3150mm

8

最大卸载距离maximum dump reach

1250mm

9

整机外形尺寸overall dimension (L×W×H)

8360×3050×3482mm

10

最小转弯半径minimum turning radius

6640mm

发动机Engine

11

型号model

潍柴 Weichai   SteyrWD10G220E23

12

型式type

直列\水冷\干缸套\直喷lnline  water cooling dry cylinder  injection

13

气缸数-缸径×行程No. of   cylinder-bore/stroke

6－126×130mm

14

额定功率rated power

162kw

15

最大扭矩maximum torque

860N.m

16

最低燃油消耗率min fuel-consume ratio

≤215g/kw.h

18

变速箱型式 gearbox mode

行星式planetary

19

档位数gear shift

前进档2个，倒退档1个2forward shift  1reverse shift

20

最高车速 maximum speed

38km/h

驱动桥Drive   axles

21

主减型式：main reducing spiral

螺旋伞齿轮一级减速 bevel gear grade   1reduction

22

轮边减速型式decelerating mode

一级行星减速planetary reduction,grade   1

23

轴距 wheel base (mm)

3340mm

24

轮距 wheel tread

2250mm

25

最小离地间隙minimum ground clearance

460mm

27

动臂提升时间 boom lifting time

5.95±0.2s

28

三项和 total time

10.95±0.5s

29

油箱容量  fuel tank capacity

300L

30

铲斗自动放平功能function of leveling   automatically

有 yes

制动系统   Brake system

31

行车制动 service brake

气顶油钳盘式四轮制动air over hydraulic   disc brake on 4 wheels

32

驻车制动 parking brake

手动钳盘式制动 manual parking brake

轮胎Tyre

33

规格type specification

23.5-25

34

前轮气压 front tyre pressure

0.4Mpa

35

后轮气压 rear tyre pressure

0.35Mpa
